| New FM cylinder series | |||||||
 |
 |
 |
 |
||||
| Outward appearance code | FM8 | FM12 | FM18 | FM30 | |||

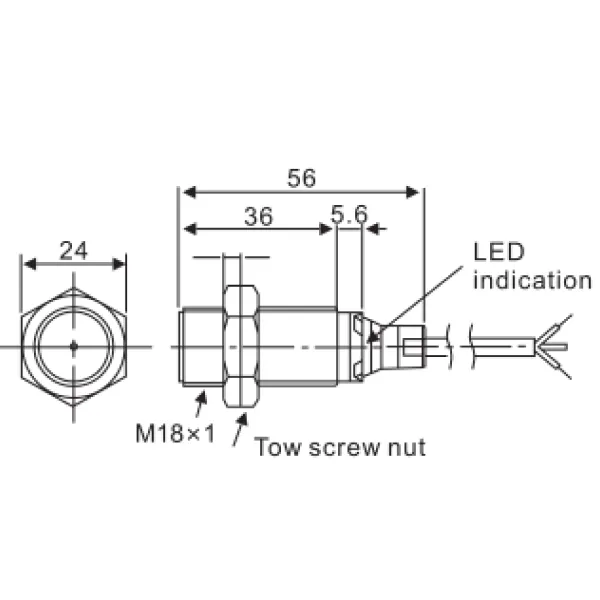

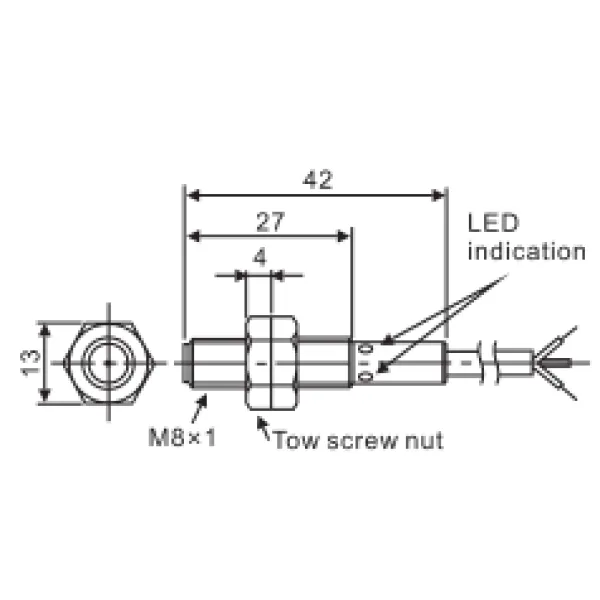

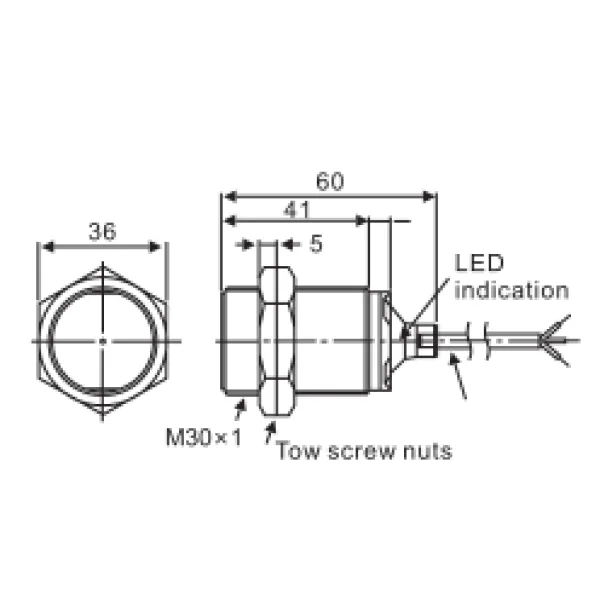

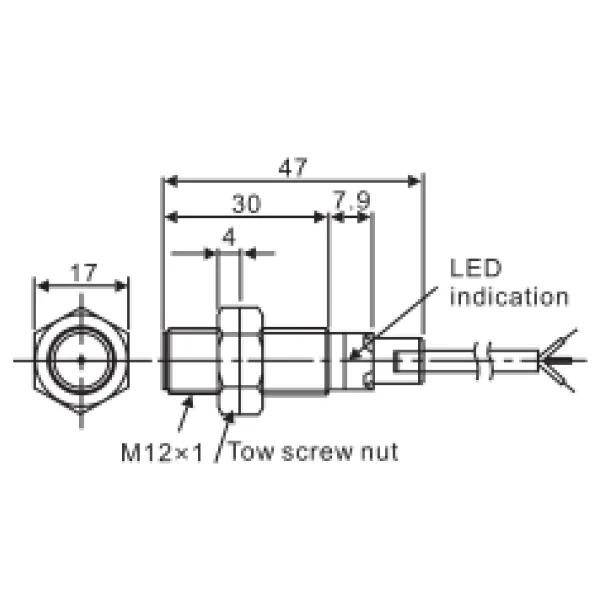

| Overall dimensions |  |
 |
 |
 |
|||
| Flush | Detection distance | 1mm | 2mm | 5mm | 10mm | ||
| Working voltage 10-30VDC | NPN | NO | FM8-3001NA | FM12-3002NA | FM18-3005NA | FM30-3010NA | |
| NC | FM8-3001NB | FM12-3002NB | FM18-3005NB | FM30-3010NB | |||
| NO NC | FM12-3002NC | FM18-3005NC | FM30-3010NC | ||||
| PNP | NO | FM8-3001PA | FM12-3002PA | FM18-3005PA | FM30-3010PA | ||
| NC | FM8-3001PB | FM12-3002PB | FM18-3005PB | FM30-3010PB | |||
| NO NC | FM12-3002PC | FM18-3005PC | FM30-3010PC | ||||
| Two-wire | NO | FM12-3002LA | FM18-3005LA | FM30-3010LA | |||
| NC | FM12-3002LB | FM18-3005LB | FM30-3010LB | ||||
| AC 90-250VAC |
NO | FM12-2002A | FM18-2005A | FM30-2010A | |||
| NC | FM12-2002B | FM18-2005B | FM30-2010B | ||||
| Non-Flush | Detection distance | 2mm | 4mm | 8mm | 15mm | ||
| Working voltage 10-30VDC | NPN | NO | FM8-3002NA | FM12-3004NA | FM18-3008NA | FM30-3015NA | |
| NC | FM8-3002NB | FM12-3004NB | FM18-3008NB | FM30-3015NB | |||
| NO NC | FM12-3004NC | FM18-3008NC | FM30-3015NC | ||||
| PNP | NO | FM8-3002PA | FM12-3004PA | FM18-3008PA | FM30-3015PA | ||
| NC | FM8-3002PB | FM12-3004PB | FM18-3008PB | FM30-3015PB | |||
| NO NC | FM12-3004PC | FM18-3008PC | FM30-3015PC | ||||
| Two-wire | NO | FM12-3004LA | FM18-3008LA | FM30-3015LA | |||
| NC | FM12-3004LB | FM18-3008LB | FM30-3015LB | ||||
| AC 90-250VAC |
NO | FM12-2004A | FM18-2008A | FM30-2015A | |||
| NC | FM12-2004B | FM18-2008B | FM30-2015B | ||||
| Output current | 100mA | 200mA/300mA | 200mA/300mA | 200mA/300mA | |||
| Standard sensing object | 8*8*1 (A3 iron) | 15*15*1 (A3 iron) | 30*30*1 (A3 iron) | 60*60*1 (A3 iron) | |||
| Response frequency | 500~800Hz | 500~800Hz | 400~600Hz | 100~400Hz | |||
| Surge absorption, polarity protection | |||||||
| Ambient temperature | -25℃ ~ 75℃ Without icing and condensation | ||||||
| Enironment humidity | 35-95% RH | ||||||
| Shell Material | Shell: nickel-plated brass; Sensing surface: ABS; Cable: PVC | ||||||
| Protection grade | IP67 | ||||||
