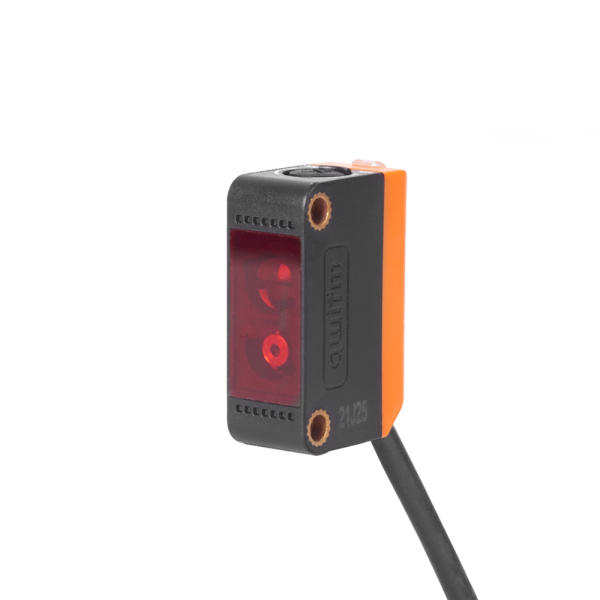

| ENO33 Laser Sensor | |||||
| No-contact long distance detecting | |||||
| Optimized photoelectric sensor for logistics industry | |||||
| Strong anti-interference capibility | |||||
| High precision, high speed | |||||
| Suitable for EN product (with PNP and NPN) in the world | |||||
 | |||||
| Product model | Diffused | Retroreflective | Through-beam | ||
| Model | NPN | NO | ENO33-D1T70NA | ENO33-D1S300NA | ENO33-D1E1000NA |
| NC | ENO33-D1T70NB | ENO33-D1S300NB | ENO33-D1E1000NB | ||
| PNP | NO | ENO33-D1T70PA | ENO33-D1S300PA | ENO33-D1E1000PA | |
| NC | ENO33-D1T70PB | ENO33-D1S300PB | ENO33-D1E1000PB | ||
| Power supply | 12-24VDC±10% fluctuation | ||||
| Consumption current | <20mA | <20mA | <20mA | ||
| Detect distance | 70cm | 300cm | 1000cm | ||
| Minimum detected object | 0.3-0.5mm (80-150mm Zone) | ||||
| Light source | Red laser (Wave length 650nm) | ||||
| Response time | Move and reset less than 0.5ms | ||||
| Ambient illumination | Lamp: less than 5000Lus, Sunlight: Infinite | ||||
| Ambient temperature | -25°C~+55°C without icing and condensation | ||||
| Ambient humidity | 30-85%RH | ||||
| Spot diameter | 5mm (in 70cm) | ||||
| Current output | 100mA | ||||
| Material | Housing: reinforced ABS, Lens: polycarbon | ||||
| Product standard | GB/T14048.10-2016 | ||||
| Protection level | IP65 (IEC) | ||||
| Backlash | 5% Max | ||||
| Sensitivity adjust | Potentionmeter | ||||
 | |||||

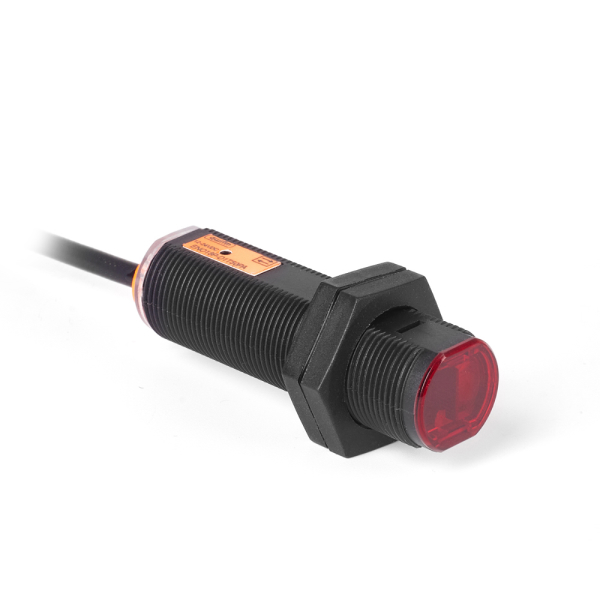

| ENO18P Laser Sensor | |||||
| No-contact long distance detecting | |||||
| Optimized photoelectric sensor for logistics industry | |||||
| Strong anti-interference capibility | |||||
| High precision, high speed | |||||
| Suitable for EN product (with PNP and NPN) in the world | |||||
 | |||||
| Product model | Diffused | Retroreflective | Through-beam | ||
| Model | NPN | NO | ENO18P-D1T70NA | ENO18P-D1S300NA | EN18P-D1E1000NA |
| NC | ENO18P-D1T70NB | ENO18P-D1S300NB | EN18P-D1E1000NB | ||
| PNP | NO | ENO18P-D1T70PA | ENO18P-D1S300PA | EN18P-D1E1000PA | |
| NC | ENO18P-D1T70PB | ENO18P-D1S300PB | EN18P-D1E1000PB | ||
| Power supply | 12-24VDC | ||||
| Consumption current | <20mA | <20mA | <20mA | ||
| Detect distance | 70cm | 300cm | 1000cm | ||
| Minimum detected object | 0.3-0.5mm | ||||
| Light source | Red laser (Wave length 650nm) | ||||
| Response time | Move and reset less than 1ms | ||||
| Ambient illumination | Lamp: less than 5000Lus, Sunlight: Infinite | ||||
| Ambient temperature | -25°C~+55°C without icing and condensation | ||||
| Ambient humidity | 30-85%RH | ||||
| Spot diameter | 5mm (in 70cm) | ||||
| Current output | 100mA | ||||
| Material | Housing: reinforced ABS, Lens: polycarbon | ||||
| Product standard | GB/T14048.10-2016 | ||||
| Protection level | IP65 (IEC) | ||||
| Backlash | 5% Max | ||||
| Sensitivity adjust | Potentionmeter | ||||
 | |||||
